LensHooke
X3 Pro

Complete semen analysis in approximately 1 minute. Advanced CASA parameters, automated morphology analysis and a 5" touchscreen for high-volume clinics.

Book a demonstration → Technical specification
LensHooke X3 Pro
Analysis parameters

What X3 Pro measures.

◉
Concentration
Sperm per ml (10⁶/ml), total count and progressive fraction
→
Motility
Class A–D per WHO 6: progressive, non-progressive, immotile
◈
Morphology
Automated analysis of normal forms (%) per WHO 6 criteria
∿
CASA kinetics
MSC, PMSC, VAP, VSL, VCL, LIN, STR, WOB, ALH and BCF
◎
pH
Direct pH measurement of seminal fluid from the same sample
◌
Round cells
Round-cell analysis
Automated image analysis

From image to report.

01

Image capture

The instrument optics capture the sample in the pre-filled cassette during analysis.

02

Detection

The image analysis identifies sperm and round cells, and calculates concentration, motility and CASA kinetics.

03

Classification and report

Morphology is classified automatically and the result is compiled into a report for the touchscreen or computer.

Workflow

Simple to use.

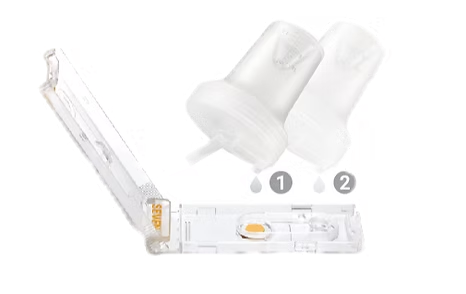

Step 01
Apply sample to CS1 cassette
Apply the sample
Apply two drops of the sample to the test cassette. No pretreatment is required.

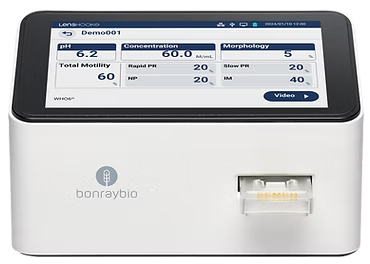

Step 02
Insert cassette into X3 Pro
Insert the cassette
Slide the test cassette into LensHooke X3 Pro.

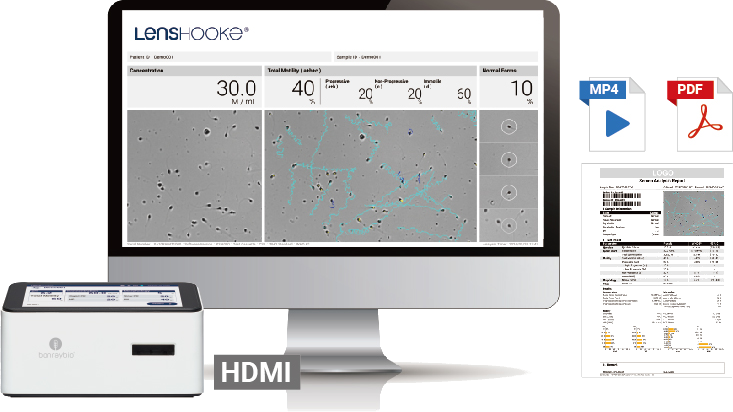

Step 03
Result shown on X3 Pro touchscreen
Read the result
A complete report is available on the 5" touchscreen or a connected computer in approximately one minute.
Reporting

Results straight on the instrument.

  • WHO 6 reference values shown directly on the 5" touchscreen
  • Detailed reports downloadable via computer or tablet
  • Format suited for printing and medical records
Consumables

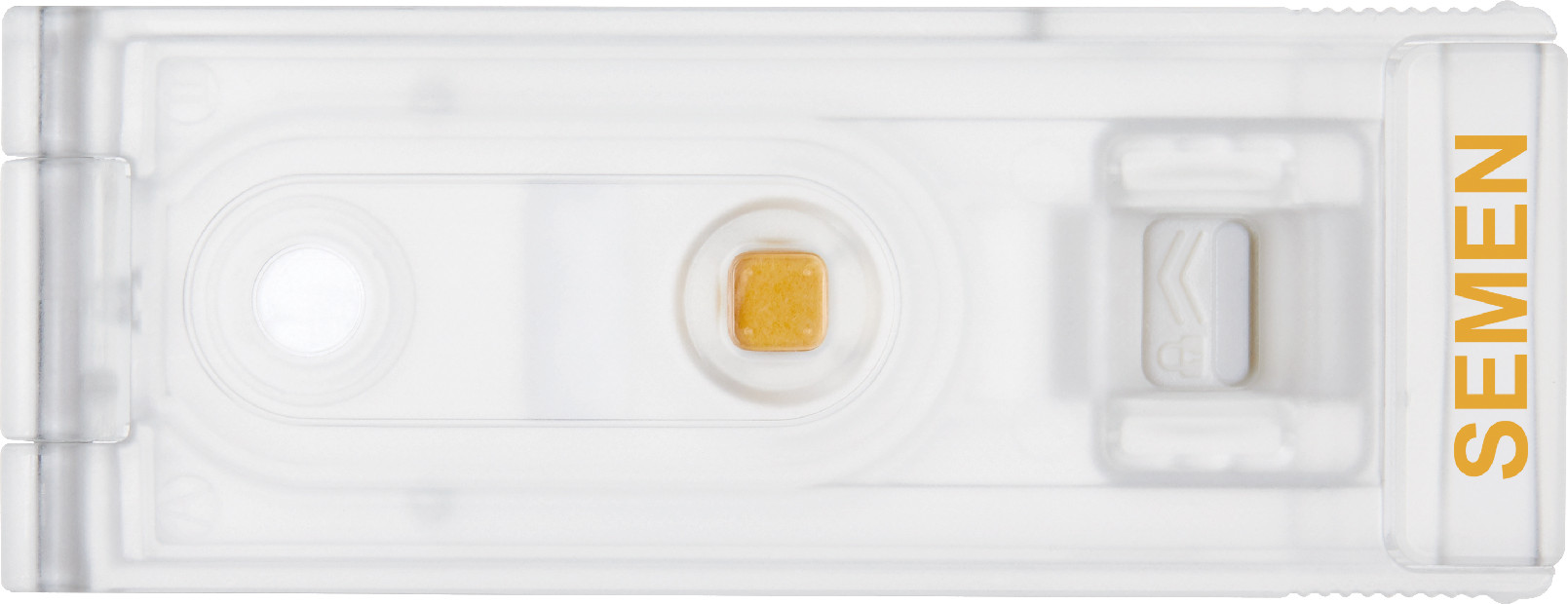

LensHooke® CS1 Semen Test Cassette.

The pre-filled cassette that powers the X3 Pro workflow - one sample per cassette, no pretreatment. Measures pH, concentration, motility and morphology.

LensHooke CS1 Semen Test Cassette
  • Easy to open
  • Anti-leakage design
  • Guided insertion
  • Optical-grade material
  • Reduces manual error
Measurement ranges
pH 6.0–8.0
Concentration 0.1–300 × 10⁶/ml
Motility 1–100 %
Morphology 1–100 %
Physical properties
Dimensions 75 × 28.6 × 7.96 mm
Material Polycarbonate (PC)
Operating 15–38 °C, < 70 % RH
Storage 2–30 °C
Transport −10 to 60 °C
Technical specification

Specifications

Analysis time ~1 minute per sample
Parameters Concentration, motility A–D, morphology, CASA kinetics (10 params), pH, round cells
Standard WHO 6 (2021)
Cassettes X3 cassettes, pre-filled
Display 5" touchscreen with video playback
Connectivity LAN-Ethernet, USB
Export PDF (printable), download to computer/tablet
CE marking IVD
ISO 13485
Power 100–240 V AC, 50/60 Hz
